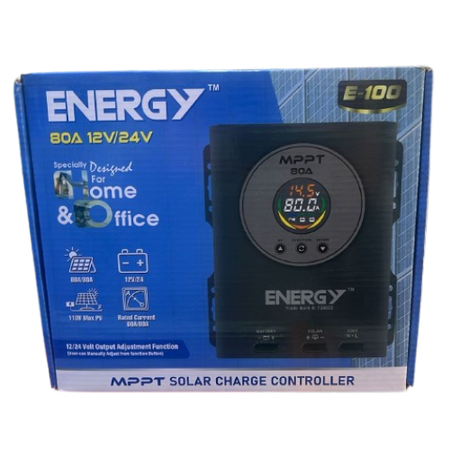

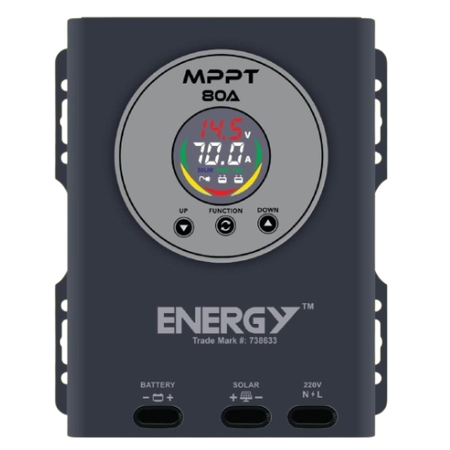

Energy MPPT Solar Controller 80A 12V/24V E-100 High-Efficiency Solar Charge Controller

Maximize your solar energy efficiency with the Energy MPPT Solar Controller 80A 12V/24V E-100. Designed for off-grid solar systems, this advanced MPPT (Maximum Power Point Tracking) charge controller ensures optimal charging performance for your solar panels while protecting your batteries from overcharging, deep discharge, and short circuits.

Key Features:

✔ MPPT Technology – Increases charging efficiency by up to 30% compared to PWM controllers.

✔ 80A High-Capacity Charging – Supports large solar arrays for efficient power management.

✔ 12V/24V Auto Recognition – Automatically detects battery voltage for seamless operation.

✔ Multiple Protection Features – Overcharge, over-discharge, reverse polarity, and short circuit protection.

✔ LCD Display & Smart Controls – Real-time monitoring of battery status, charging current, and voltage.

✔ Compatible with Multiple Battery Types – Supports lead-acid, AGM, GEL, and lithium batteries.

✔ Efficient Heat Dissipation – Advanced cooling system for enhanced durability and performance.

Specifications:

Model: E-100

Maximum Charging Current: 80A

Input Voltage: 12V/24V (Auto Selection)

Max PV Input Voltage: 150V

Conversion Efficiency: Up to 98%

Display: LCD screen with user-friendly interface

Protection Features: Overcharge, over-discharge, short circuit, and reverse polarity protection

Application: Ideal for solar home systems, RVs, boats, and off-grid applications
